AL6005-T5 single column Anodizing solar ground mounting system

This solar hanger bolts are designed for trapezoidal / zinc / corrugated / sandwich metal roof profiles. Our solar hanger bolts are a SUS304 fasten parts to fixed rails and roofing mountings. Two length 200mm and 250mm options can be suitable for adjust distance between brackets / L foot rails and metal roofing.

Hanger bolt lits includes : stainless steel bolt , nuts, EPDM rubber and fasten L foot / small stainless plate …

Hanger bolts can be pre-assembled with listed parts which consist of : one hanger bolts, 3 collar nuts with riffle, 1 washer, 1 SUS 304 plate with long slot , EPDM nodes .

This solar roof fasten bolts can be well used with adapter plates, L-feet for solar mounting and racking systems.

Installation Guide :

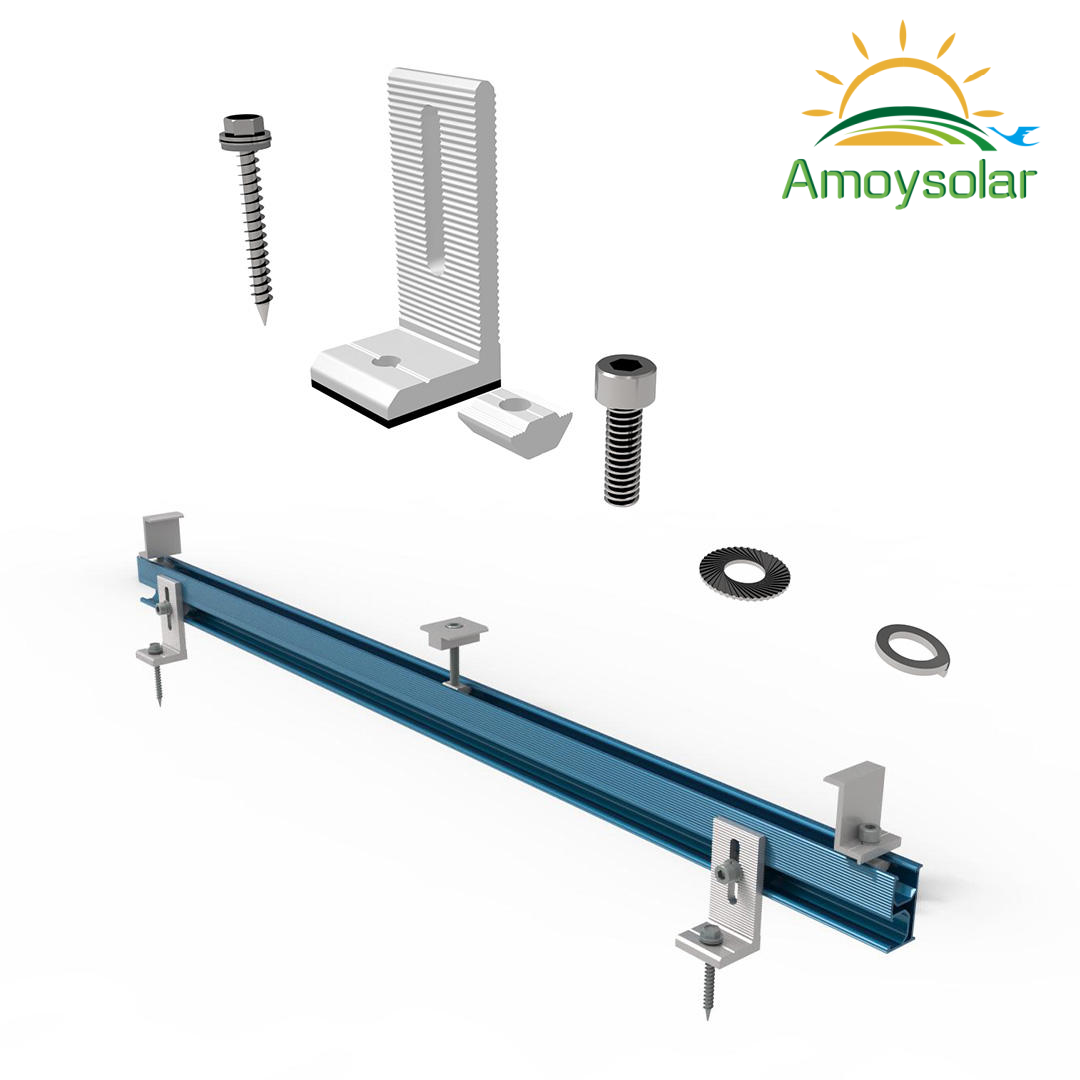

Components includes for roof fastening with our hanger bolt kits, double hanger bolts, L bracket, mounting rails, mid / end clamps .

(1) Pre-drilled hole on metal roofing profile and wood rafter ;

(2) Screw in hanger bolts , the EPDM seal should slightly compressed roof surface ;

(3) Adjust adapter plate to proper height, then fasten locking nuts well ;

(4) Mounting aluminum rails and rail splice ;

(5) Mounting mid / end clamps.

Product Description

Features

1. Easy / fast installation steps;

2. Clean and aesthetics looking after installation;

3. Tapping screw for L-foot for quick mounting;

4. SGS, TUV, ISO standard;

5. Anodized surface treatment, high quality and long lifespan;

6. Application: corrugated / trapezoidal / tin / asbestos roofs…

7. Silicone rubber pads for waterproof and tightness between L bracket and metal roof ridges;

FAQ

Q:Are you a factory or trading company?

A:Xiamen Amoy Solar Technology is a high-tech enterprise that seamlessly integrates R&D, precision manufacturing, and global sales of photovoltaic (PV) mounting and balance-of-system products.

Q: Where is your factory located?

A: Our factory is located in Xiamen city, Fujian province,China.

Q: How can I get some samples?

A: We are honored to offer you samples according to your inquiry.

Q: How does you factory do regarding quality control?

A: "Quality is priority" , as an ISO 9001 certified manufacturer, we are capable of strict quality and management control from the very beginning to the end.

Q:What necessary info for us to design and quote?

1. What is your pv panels dimension? Length x_____mm Width x____mm Thickness

2.How many panel are you going to mount? _______Nos.

3.Do you have any special requirement on ground/flat roof clearance?

4.May I know the tilt angle you need?________degree

5.What is your planned pv assmebly block? ________Nos. in a row,___rows

6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.

Q：What can you get by choosing Amoy?

Premium Solar Mounting Solutions – Engineered for Performance, Built for Life

1. Source Factory Quality Control
Every component is manufactured and inspected in our own ISO-certified facility, ensuring traceability, consistency, and zero-compromise quality from raw material to finished product.

2. Private Design Scheme
Our in-house R&D team delivers exclusive, patent-ready solutions tailored to your roof type, terrain, and local wind-snow loads—no one-size-fits-all brackets.

3. Factory Pre-assembled, Easy to Install
Up to 80 % of parts are pre-assembled and labeled in our plant. A two-person crew can finish a 5 kW array in under 2 hours—cutting labor costs by up to 40 %.

4. 10-Year Warranty, 25-Year Service Life
Anodized aluminum 6005-T5 rails, SUS 304 fasteners, and rigorous salt-spray & UV testing deliver proven durability backed by an industry-leading warranty.

5. Support Customer Customization & Free Sample Service
Need a custom color, logo, or packaging? MOQ starts at 1 set for samples and 50 sets for OEM batches. Free samples ship within 7 days so you can validate before you scale

Company

ABOUT US :

Xiamen Amoy Solar Technology is a high-tech enterprise that seamlessly integrates R&D, precision manufacturing, and global sales of photovoltaic (PV) mounting and balance-of-system products. Leveraging our own aluminum-extrusion mills and CNC-machining plants, we maintain a fully traceable, vertically integrated supply chain that guarantees material consistency, on-time delivery, and strict cost control.

Our in-house structural engineers and certified designers apply rigorous wind-load, snow-load, and seismic calculations to every project—whether a multi-megawatt ground installation or a distributed rooftop array—ensuring code compliance and 25-year reliability. We currently serve leading module manufacturers, EPC contractors, and independent power producers across five continents.

Mission
To deliver stable, reliable, and cost-effective PV mounting solutions that maximize energy yield and minimize LCOE for our customers worldwide.

Contact us today for quotations, technical drawings, or complimentary samples.
