Klip lok 700 clamp for metal roof solar mounting installation
No rails. No leaks. No drama - Check out how nice of the KLIP-LOK solar clamp：
Non-penetrating, leak-proof
• Clamps directly onto the standing seam without drilling, preserving roof integrity and manufacturer warranty .
Rail-less & low-profile
• Eliminates rails, splices and thousands of fasteners—cutting material cost by ~15 %.
Rapid, tool-light install:
• cutting labor hours by ~20 % .
Lightweight & durable
• AL-6005-T5 body with anodized finish + 304 stainless hardware reducing roof load and durable.
Aluminum Amoy Solar Klip Lok 700 Clamp Kit For Standing Seam Metal Rooftop

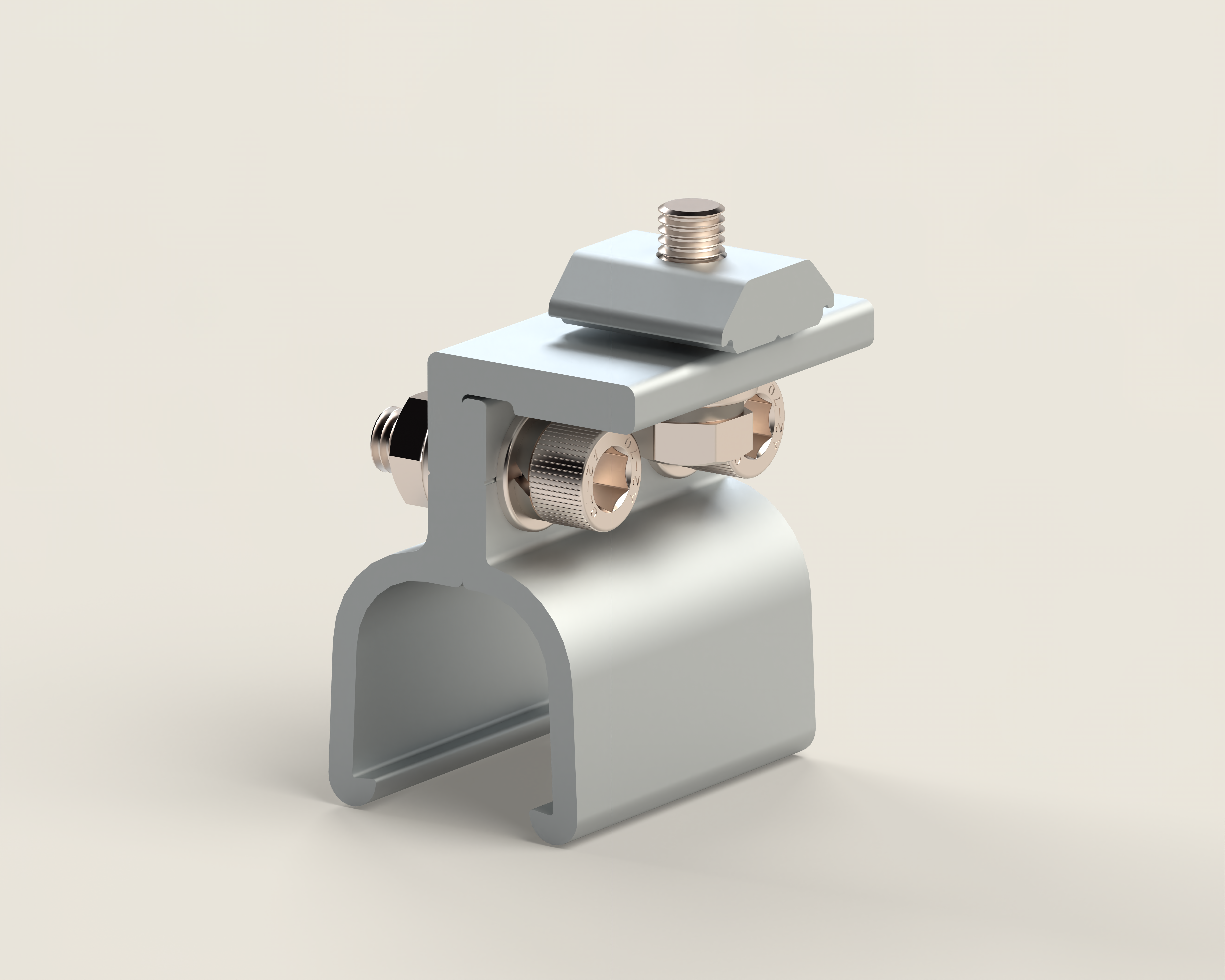

Amoy solar KLIP-LOK Solar Clamp Kit
Non-Penetrating, Rail-less Standing-Seam PV Fastener

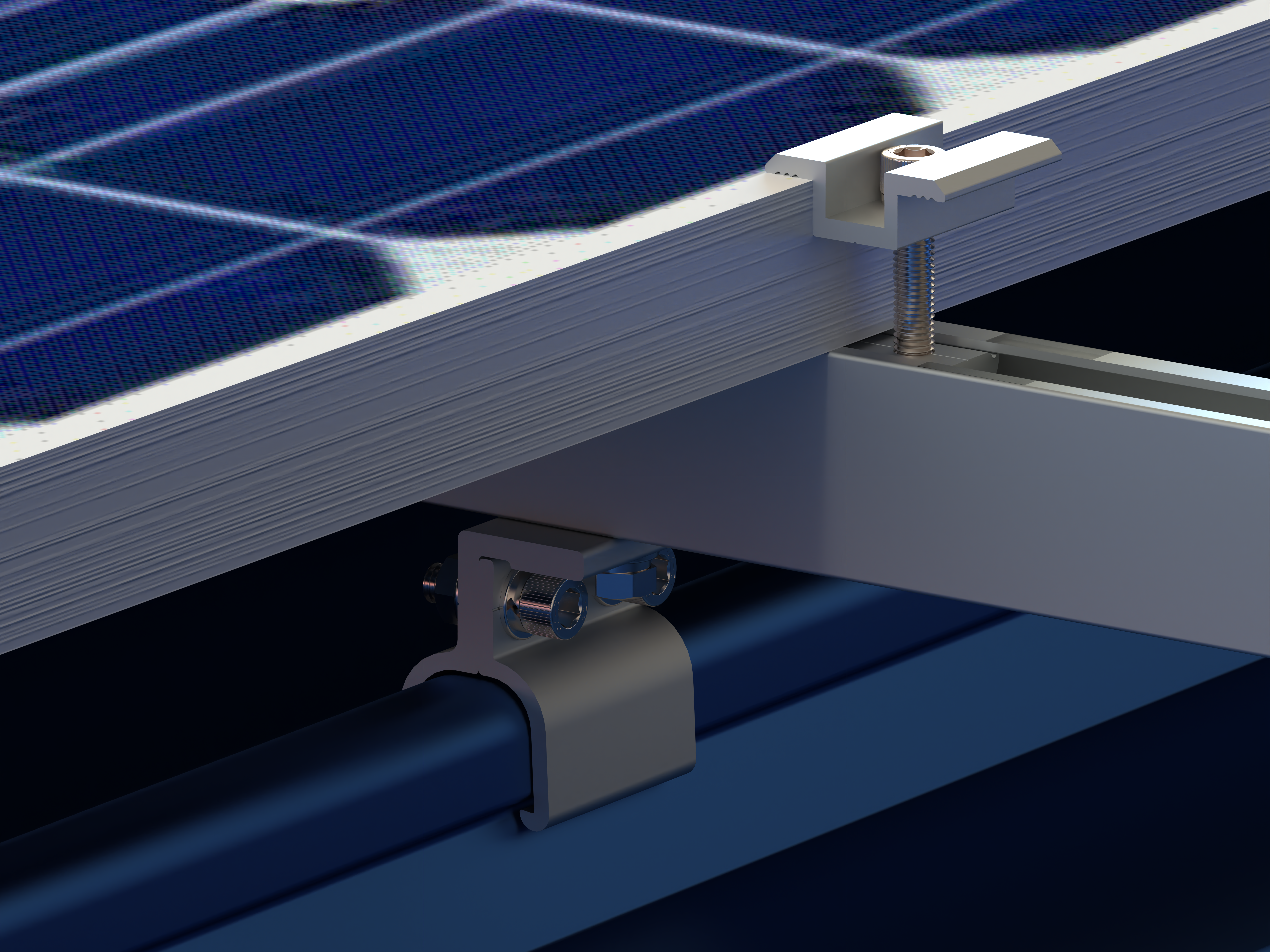

Application: Secure framed or frameless PV modules directly onto Amoy solar Klip-Lok standing-seam ribs without rails, roof penetrations, or sealants.
Key Features
• Zero Penetration – Protects membrane warranty and eliminates leak paths.
• Rail-less Design – Saves ~15 % material and ~20 % labor versus traditional rail systems.
• Snap-in Installation – Pre-assembled; installs in ~15 seconds per clamp with one hex key.
• Universal Fit – Accepts module frame heights 30–40 mm; compatible with framed & clamp-style frameless modules.
• Corrosion-proof – AL-6005-T5 anodized body, 304 SS hardware, UV-stable EPDM isolators.
Component list
Product Description
Product name | Aluminum Klip lok clamp |
Brand | Amoy Solar |
Assemble Stie | Solar Mounting Rail |
Application | Standing seam metal rooftop |
Max Wind Speed | 45m/s |
Max Snow Load | 1.4KN/m² |
Material | Aluminum 6005-T5 & SUS 304 |
Surface Treatment | Anodized |
Certification | ASNZS1170/intertek/SGS/Gamcorp/MCS/Intertek/SPAD |
Warranty | 10 Years |
Duration | More than 25 year |
Features
✅ Snap-On in 15 Seconds
No measuring, no cutting, no sealant. Just position, click, torque two captive screws, and the clamp is locked to the rib for life.
✅ Rail-Free = Cost-Freeing
Ditch the rails, splices, and extra hardware—cut material costs by 15 % and labor by 20 %. One pallet of clamps replaces eight pallets of rails.
✅ Built for Hurricane Season
Wind-rated to 45 m/s (135 mph) and pull-tested to 1.4 kN. Certified to UL 2703 & AS/NZS 1170, so you can sleep through the storm.
✅ Roof Warranty Stays Intact
Zero penetrations mean zero leaks and zero angry building owners. Your original roof warranty remains untouched.
FAQ
Q:Are you a factory or trading company?
A: Xiamen Amoy Solar Technology is a high-tech enterprise that seamlessly integrates R&D, precision manufacturing, and global sales of photovoltaic (PV) mounting and balance-of-system products.
Q: Where is your factory located?
A: Our factory is located in Xiamen city, Fujian province,China.
Q: How can I get some samples?
A: We are honored to offer you samples according to your inquiry.
Q: How does you factory do regarding quality control?
A: "Quality is priority" , as an ISO 9001 certified manufacturer, we are capable of strict quality and management control from the very beginning to the end.
Q:What necessary info. for us to design and quote?
1. What is your pv panels dimension? Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
We primarily use high-strength aluminum alloys, specifically international standards 6005-T5. This grade undergo strict heat treatment processes and offer the following core advantages: High Strength & Light Weight: They provide exceptional structural strength while being significantly lighter than steel, reducing shipping costs and simplifying installation, thereby lowering the overall load on...more
