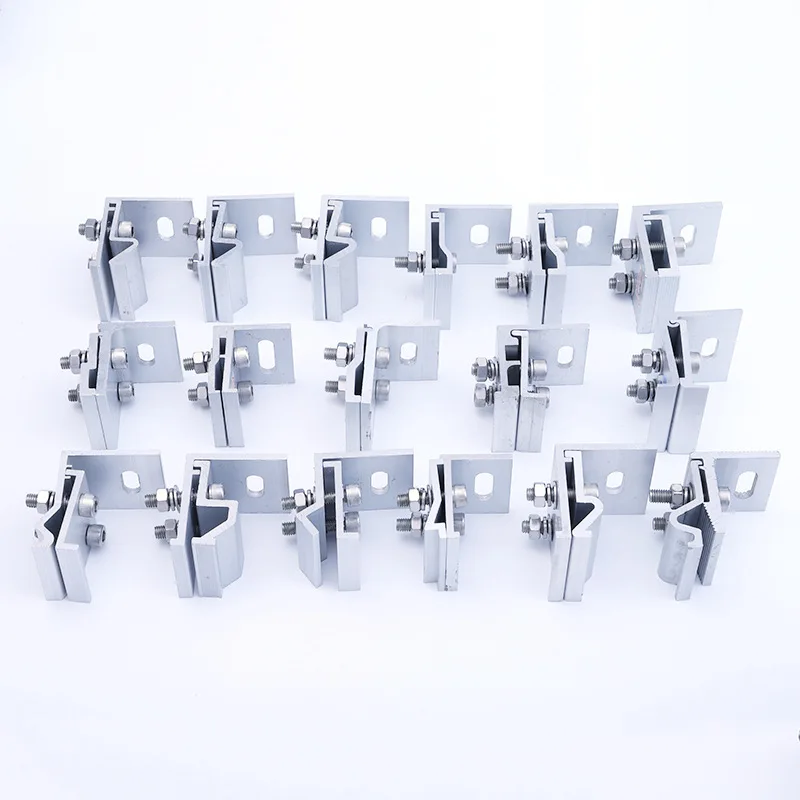

PV system standing seam clamp solution
Aluminum Amoy Solar Klip Lok Clamp Kit For Standing Seam Metal Rooftop

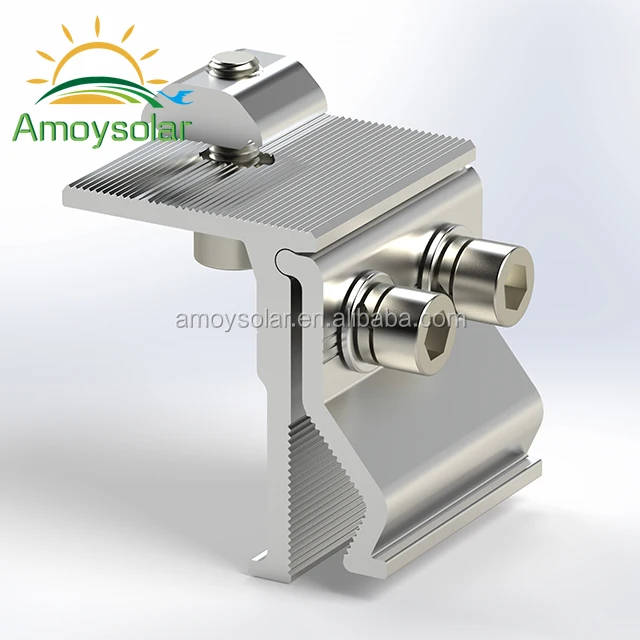

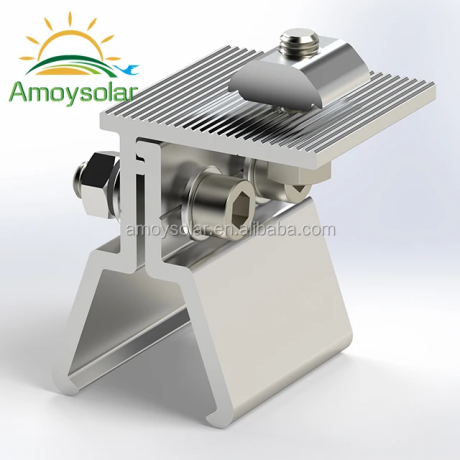

Amoy solar KLIP-LOK Solar Clamp Kit
Non-Penetrating, Rail-less Standing-Seam PV Fastener
Application:
Secure framed or frameless PV modules directly onto Amoy solar Klip-Lok standing-seam ribs without rails, roof penetrations, or sealants.
Key Features:
• Zero Penetration – Protects membrane warranty and eliminates leak paths.
• Rail-less Design – Saves ~15 % material and ~20 % labor versus traditional rail systems.
• Snap-in Installation – Pre-assembled; installs in ~15 seconds per clamp with one hex key.
• Universal Fit – Accepts module frame heights 30–40 mm; compatible with framed & clamp-style frameless modules.
• Corrosion-proof – AL-6005-T5 anodized body, 304 SS hardware
Component list
Product Description
| Product name | Aluminum Standing Seam Clamp |
| Brand | Amoy Solar |
| Assemble Site | Metal Roof |
| Application | Standing Seam Metal rooftop |
| Max Wind Speed | 45m/s |
| Max Snow Load | 1.4KN/m² |
| Material | Aluminum 6005-T5 & SUS 304 |
| Surface Treatment | Anodized |
| Certification | ASNZS1170/intertek/SGS/Gamcorp/MCS/Intertek/SPAD |
| Warranty | 10 Years |
| Duration | More than 25 years |
Features
No measuring, no cutting, no sealant. Just position, click, torque two captive screws, and the clamp is locked to the rib for life.
Ditch the rails, splices, and extra hardware—cut material costs by 15 % and labor by 20 %. One pallet of clamps replaces eight pallets of rails.
Wind-rated to 45 m/s (135 mph) and pull-tested to 1.4 kN. Certified to UL 2703 & AS/NZS 1170, so you can sleep through the storm.
Zero penetrations mean zero leaks and zero angry building owners. Your original roof warranty remains untouched.
FAQ
Q:Are you a factory or trading company?
A: We are the factory which is specialized in producing kinds of solar mounting systems for residential, commercial and utility.
Q: Where is your factory located?
A: Our factory is located in Xiamen city, Fujian province,China.
Q: How can I get some samples?
A: We are honored to offer you samples according your inquiry.
Q: How does you factory do regarding quality control?
A: "Quality is priority" , as an ISO 9001 certified manufacturer, we are capable of strict quality and management control from the very beginning to the end.
Q:What necessary info. for us to design and quote?
1. What is your pv panels dimension? Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
We primarily use high-strength aluminum alloys, specifically international standards 6005-T5. This grade undergo strict heat treatment processes and offer the following core advantages: High Strength & Light Weight: They provide exceptional structural strength while being significantly lighter than steel, reducing shipping costs and simplifying installation, thereby lowering the overall load on...more
