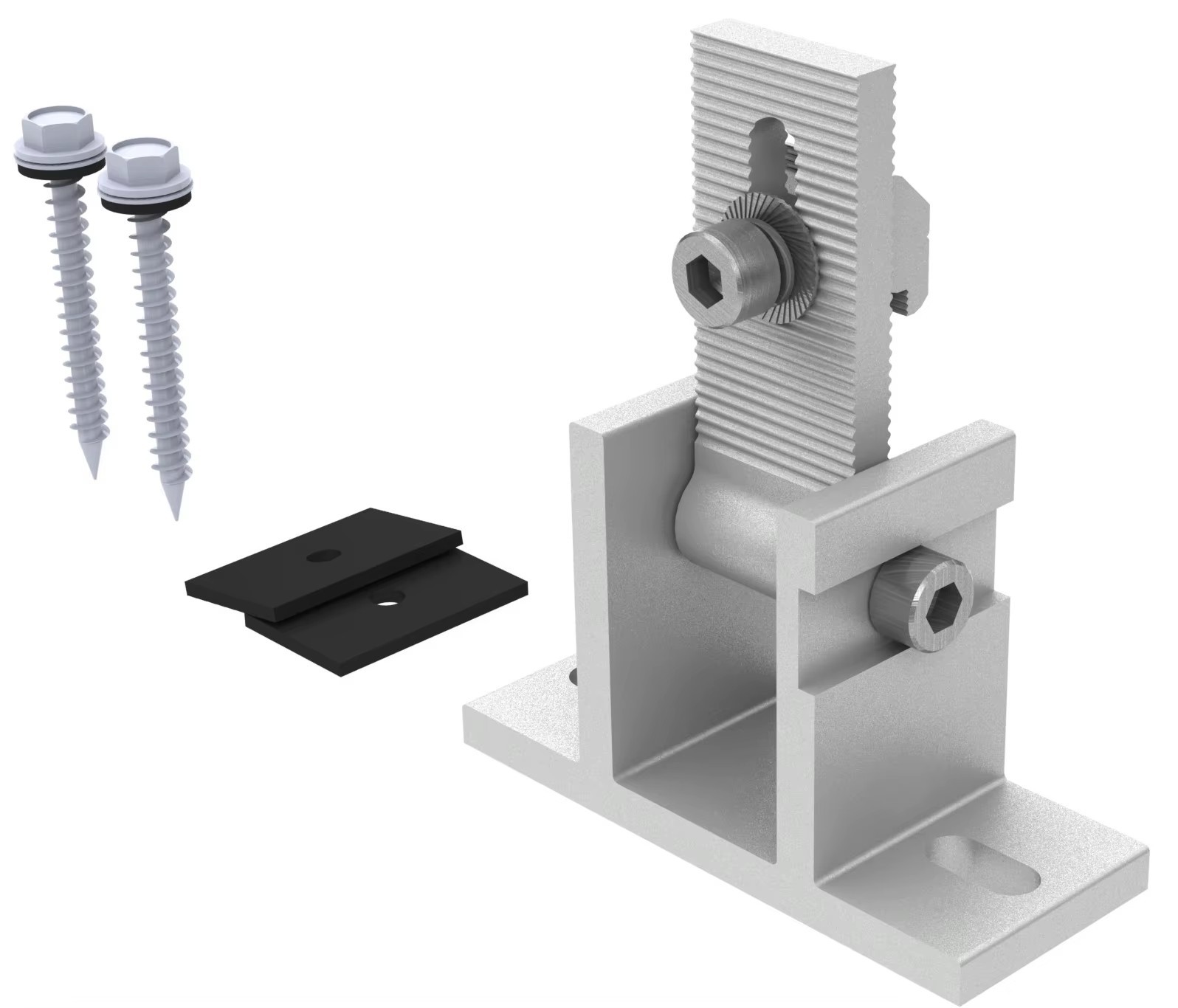

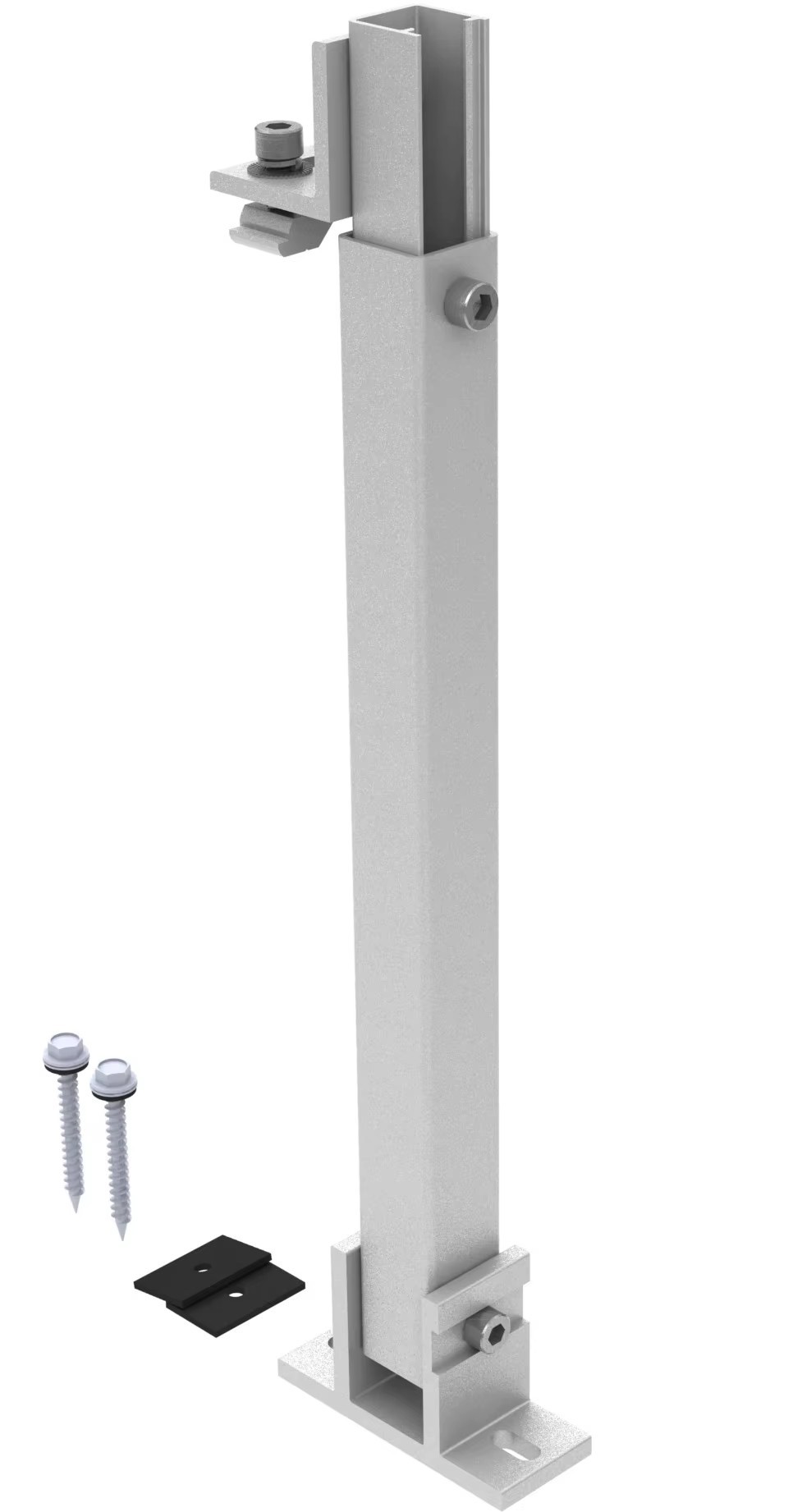

Aluminum alloy Front Rear Leg bracket combination for flat roof system-TP-04A

Front Rear Leg  Adjustable Tilt Solar Mounting System has been developed for residential solar pv installation on tin roofs or concrete flat roof. The adjustable tilt flat roof mounting system can be set at a tilt angle from 10-60 degree, which is adaptable and help to get the maximum solar power output.

Component  list

Product Description

Features

1、Non-slip dual-slot anodizing leg

2、High corrosion resistant surface treatment

3、Smart design for structure and Save cost

4、Fast and easy installation

FAQ

Q:Are you a factory or trading company?

A: Xiamen Amoy Solar Technology is a high-tech enterprise that seamlessly integrates R&D, precision manufacturing, and global sales of photovoltaic (PV) mounting and balance-of-system products.

Q: Where is your factory located?

A: Our factory is located in Xiamen city, Fujian province,China.

Q: How can I get some samples?

A: We are honored to offer you samples according to your inquiry.

Q: How does you factory do regarding quality control?

A: "Quality is priority" , as an ISO 9001 certified manufacturer, we are capable of strict quality and management control from the very beginning to the end.

Q:What necessary info for us to design and quote?

1. What is your pv panels dimension? Length x_____mm Width x____mm Thickness

2.How many panel are you going to mount? _______Nos.

3.Do you have any special requirement on ground/flat roof clearance?

4.May I know the tilt angle you need?________degree

5.What is your planned pv assmebly block? ________Nos. in a row,___rows

6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.

Q：What can you get by choosing Amoy?

A: Premium Solar Mounting Solutions – Engineered for Performance, Built for Life

1. Source Factory Quality Control
    Every component is manufactured and inspected in our own ISO-certified facility, ensuring traceability, consistency, and zero-compromise quality from raw material to finished product.

2. Private Design Scheme
    Our in-house R&D team delivers exclusive, patent-ready solutions tailored to your roof type, terrain, and local wind-snow loads—no one-size-fits-all brackets.

3. Factory Pre-assembled, Easy to Install
    Up to 80 % of parts are pre-assembled and labeled in our plant. A two-person crew can finish a 5 kW array in under 2 hours—cutting labor costs by up to 40 %.

4. 10-Year Warranty, 25-Year Service Life
    Anodized aluminum 6005-T5 rails, SUS 304 fasteners, and rigorous salt-spray & UV testing deliver proven durability backed by an industry-leading warranty.

5. Support Customer Customization & Free Sample Service
    Need a custom color, logo, or packaging? MOQ starts at 1 set for samples and 50 sets for OEM batches. Free samples ship within 7 days so you can validate before you scale

Company

Xiamen Amoy Solar Technology is a high-tech enterprise that seamlessly integrates R&D, precision manufacturing, and global sales of photovoltaic (PV) mounting and balance-of-system products. Leveraging our own aluminum-extrusion mills and CNC-machining plants, we maintain a fully traceable, vertically integrated supply chain that guarantees material consistency, on-time delivery, and strict cost control.

Our in-house structural engineers and certified designers apply rigorous wind-load, snow-load, and seismic calculations to every project—whether a multi-megawatt ground installation or a distributed rooftop array—ensuring code compliance and 25-year reliability. We currently serve leading module manufacturers, EPC contractors, and independent power producers across five continents.

Mission
 To deliver stable, reliable, and cost-effective PV mounting solutions that maximize energy yield and minimize LCOE for our customers worldwide.

Contact us today for quotations, technical drawings, or complimentary samples.
