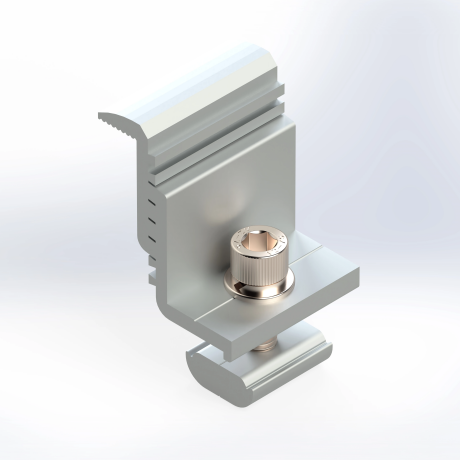

Adjusted solar mounting end clamp
• Rail-less Design – Saves ~15 % material and ~20 % labor versus traditional rail systems.
• Snap-in Installation – Pre-assembled; installs in ~15 seconds per clamp with one hex key.
• Universal Fit – Accepts module frame heights 30–40 mm; compatible with framed & clamp-style frameless modules.
• Corrosion-proof – AL-6005-T5 anodized body, 304 SS hardware, UV-stable EPDM isolators.

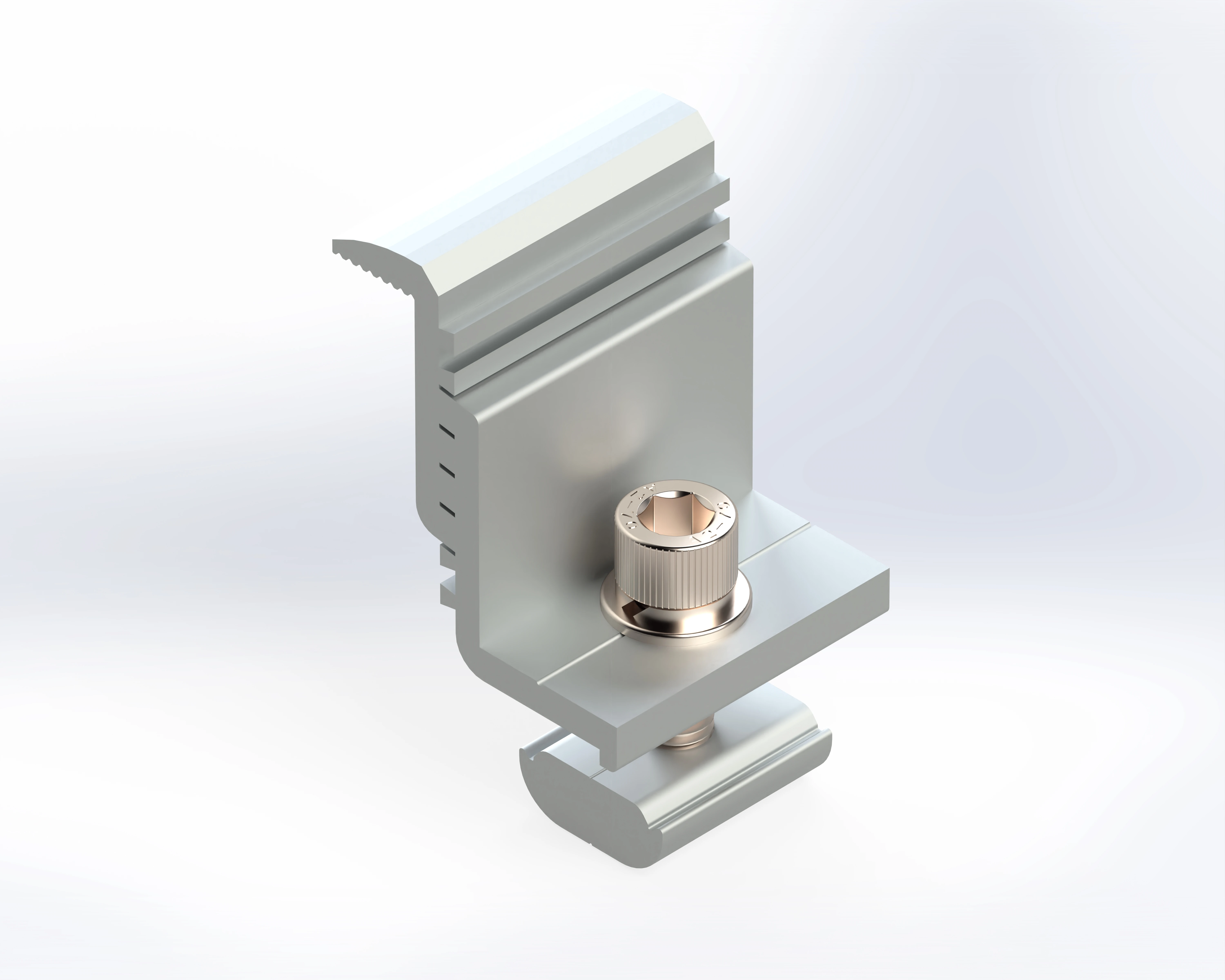

Aluminum End Clamp
Amoy's aluminum end clamp for solar panel is made of extruded anodized aluminum material, which has good rust-proof and corrosion protection. It is anodized on surface finish normally, it can be mill finish as customer’s request also. We have silvery and black for your choice or customized to meet your demands. Our factory provides the different clamp series, including 30/35/40/45/50mm and more to fit the solar panels. The aluminum end clamp for solar panels is matching with a socket head screw, a flat washer, a spring washer and a sliding nut. It also can be equipped with grounding clip to fix into mounting rail to reach grounding propose. We are serious with the quality of the clamps and provide the guarantee for all of our products.
Component list
Product Description
| Description | Aluminum end clamp |
| Brand | Amoy Solar |
| Application | Solar mounting |
| Material | AL6005-T5, SUS304 |
| Max Wind Speed | 45m/s |
| Max Snow Load | 1.4KN/m² |
| Colar | Black, Silver |
| Surface Treatment | Anodized |
| Certification | ASNZS1170/intertek/SGS/Gamcorp/MCS/Intertek/SPAD |
| Warranty | 10 Years |
| Duration | More than 20 years |
Features
1. Suitable for different areas
Customized solution to fit high wind and heavy snow areas.
2. Color is optional
Black or silver to choose from.
3. Pre-Assembly
Components have been high pre-assembly on factory to save your installation time & cost.
FAQ
Q:Are you a factory or trading company?
A: We are the factory which is specialized in producing kinds of solar mounting systems for residential, commercial and utility.
Q: Where is your factory located?
A: Our factory is located in Xiamen city, Fujian province,China.
Q: How can I get some samples?
A: We are honored to offer you samples according to your inquiry.
Q: How does you factory do regarding quality control?
A: Quality is priority" , as an ISO 9001 certified manufacturer, we are capable of strict quality and management control from the very beginning to the end.
Q:What necessary info. for us to design and quote?
1. What is your pv panels dimension? Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
We primarily use high-strength aluminum alloys, specifically international standards 6005-T5. This grade undergo strict heat treatment processes and offer the following core advantages: High Strength & Light Weight: They provide exceptional structural strength while being significantly lighter than steel, reducing shipping costs and simplifying installation, thereby lowering the overall load on...more
