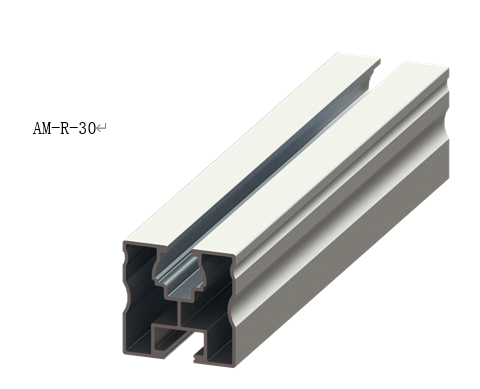

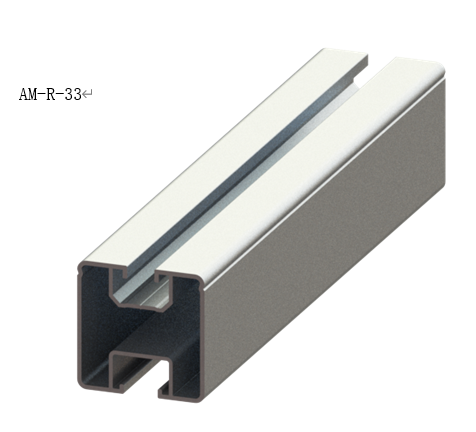

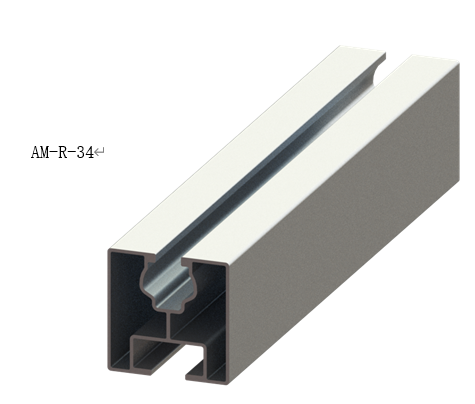

40*40mm solar roof rack

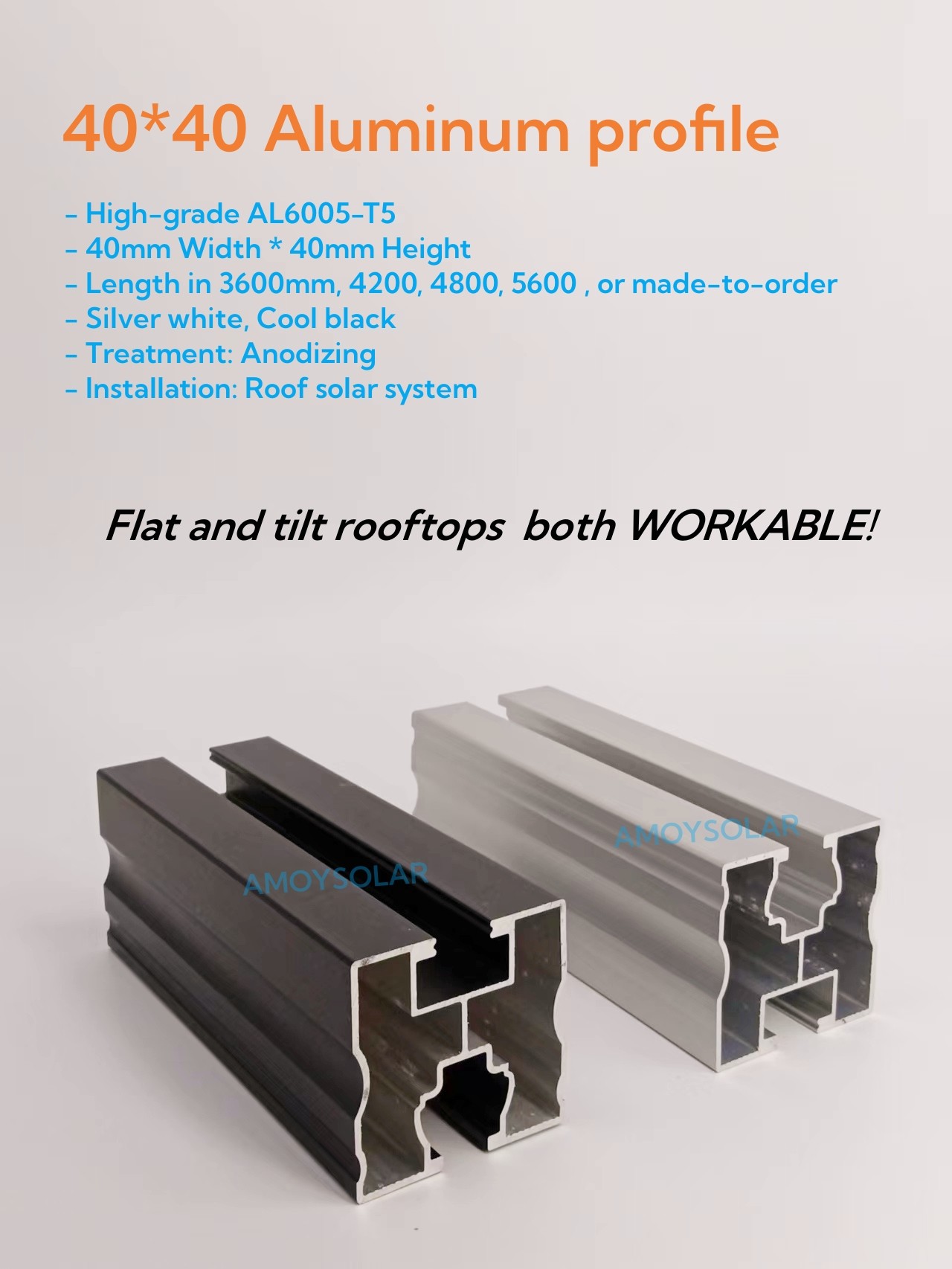

40×40 mm Premium Aluminum Rail – engineered for installers who demand speed, strength and zero callbacks.
• Aircraft-Grade 6005-T5 Extrusion, anodized ≥12 μm: salt-fog, UV and scratch resistant for 25+ years.
• True 40 mm Square Profile – pairs seamlessly with M8/M10 T-bolts, mid clamps, end clamps, splice bars and grounding lugs from every major brand.
• Pre-Punched & Symmetrical: simply flip, slide and tighten—no measuring, no drilling, no swarf on the roof.
Length customized : 2.1 m / 3.3 m / 4.2 m / 6 m
Send us your roof plan—exact parts list and quote within 60 minutes to have your unique offer !
Tile roof solar mounting system
With the increasing demand for solar energy, many people choose to install solar panels on the roof.In order to effectively support the tile roof installation system, we have specially designed installation components for tile roofs.The hook for solar panels is one of the important installation components.
The module allows installation on tiled roofs. It can withstand a wind speed of 60 meters per second through a robust design and high-quality materials.Corrosion resistance is achieved through anodized structural grade aluminum and stainless steel parts.The unique and innovative design makes installation quick and easy.The roof-damaging behavior of cutting tiles and perforating is eliminated, and the adjustable height provides application flexibility.
Solar racking for tile roof with high-quality stainless steel roof hooks, it is suitable for most types of tile roofs.Bottom installation and non-adjustable devices can be used to meet special installation requirements.
Using Amoy's products can save time, save money and provide high-quality installation every time. The solar mounting system provides a cost-effective way of installation, which can be installed quickly and easily! All system components are made of high-grade anodized aluminum and stainless steel. Fasteners and pull ring nuts are configured to save additional parts purchase. All these advantages save you labor costs and time.
Component list
Product Description
| product name | Tile roof solar mounting system |
| Brand | Amoy |
| Assemble Stie | tike roof |
| Tilt Angle | 5°~ 60° |
| Max Wind Speed | 60 m/s |
| Max Snow Load | 1.5KN/m² |
| Material | Aluminum & Stainless Steel |
| Surface Treatment | Anodized |
| Certification | ASNZS1170/intertek/SGS/Gamcorp/MCS/Intertek/SPAD |
| Warranty | 10 Years |
| Duration | More than 20 year |
Features
1.Tile Hook
Several typesaccording to your tile direction.
2.Simple Components
Only 3 components!
3. Most Parts arepreassembled
Save 50% labor cost
4.Lower and Competitive price.
5.Rust-resistance.
FAQ
Q:Are you a factory or trading company?
A: We are the factory which is specialized in producing all kinds of solar mounting systems for residential, commercial and utility.
Q: Where is your factory located?
A: Our factory is located in Xiamen city, Fujian province,China.
Q: How can I get some samples?
A: We can honored offer you samples according your inquiry.
Q: How does you factory do regarding quality control?
A: "Quality is priority" we always attach great important to quality controlling from the beginning to the very end.
Q:What necessary info for us to design and quote?
1. What is your pv panels dimension? Length x_____mm Width x____mm Thickness
2.How many panel are you going to mount? _______Nos.
3.Do you have any special requirement on ground/flat roof clearance?
4.May I know the tilt angle you need?________degree
5.What is your planned pv assmebly block? ________Nos. in a row,___rows
6.How is weather there, such as wind speed and snow load?___m/s anit-wind speed and____KN/m2 snow load.
Q：What can you get by choosing Amoy?
1. Source factory quality control.
2. Private design scheme.
3. More options.
4. Factory pre-assembled, easy to install.
5. 10-year warranty, 25-year service life.
6. Support customer customization service and free sample service.
Company
Amoy Factory was established in 2010. Xiamen Amoy Solar Technology Co., Ltd. was established in Fujian, China in 2020 as an independent foreign trade part. It is a high-tech enterprise specializing in the design, production and sales of solar energy system products. With its own aluminum manufacturing, processing plants and complete supply chain, it serves almost all solar system product component companies, solar system ground power station and solar system roof power station projects, and is committed to providing customers with stable, reliable and cost-effective products. product.
